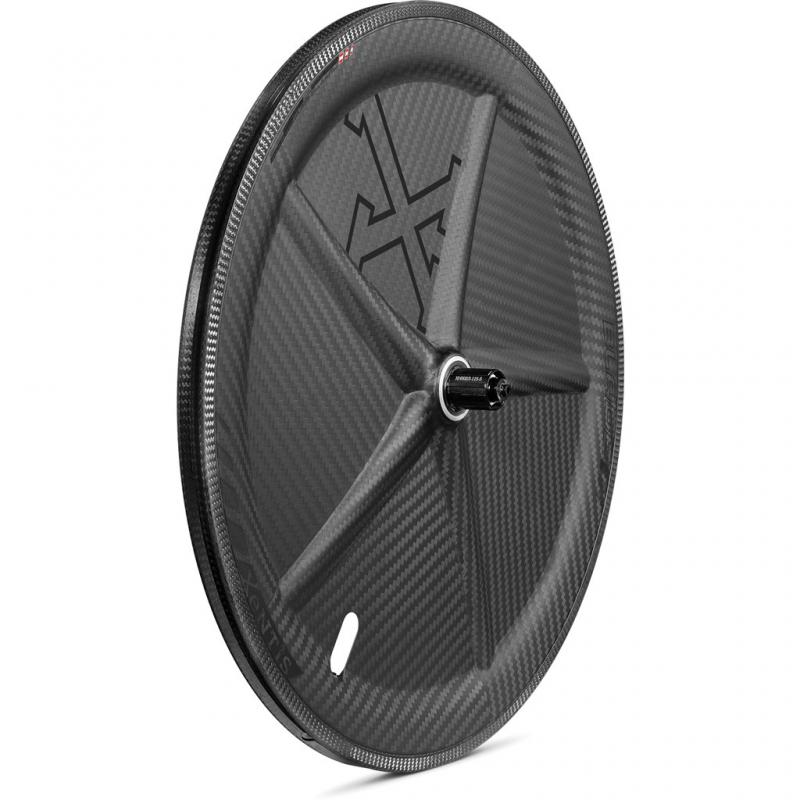

Xentis Blade - Carbon Disc Wheel - Tubular - Centerlock - 12x142mm - matt black
Symbolic picture: For illustrative purposes the product is shown in another color or variation.

High-end disc wheel with brake disc mount for timetrail - Made in Austria


Blade, the optimal companion in the fight against time. Paired with a XeNTiS Mark 3 or XeNTiS Squad 5.8 Race for disc brakes as front wheel, this disc wheel is an absolute highlight for the ambitious triathlete and time trial racer. The monocoque carbon wheel, aerodynamically perfected with minimal drag, is manufactured in the OSH process and differs from the conventionally built disc wheels by the production of spokes and rim in one shot.

This design enables the compensation of high loads and guarantees unbeatable low maintenance-afford even after a long mileage. The range of application is rounded off by the hub housing integrated in the carbon body with Centerlock® disc brake interface, which ensures direct power transmission during acceleration and braking.

XeNTiS claims to set new standards. Many years of expertise in dealing with carbon flows into the largely hand crafted production lines. Essential are also the experiences of successful athletes as they are the drive behind the permanent development of XeNTiS wheels and components.

RFID:
The wheels are 100% hand made in Austria All wheels are fitted with a unique RFID chip that allow exact information to be traced and extracted such as origin and manufacturing specifications.

UV-protection:
XeNTiS Squad SL and monocoque wheels are coated and therefore UV protected.

Integrated magnet:
XeNTiS wheels are harmonically balanced and feature an integrated tachometer magnet.

XeNTiS XH004 hub:
The XeNTiS development is not limited to the production of high quality carbon rims, but also extends to the development and manufacture of in-house hubs. Long-term tests, bench testing and ultimately racing commitments contribute to the excellent results.

hub body made out of aluminium
internally axle with 17 mm diameter
twice sealed bearings
Centerlock brake disc mount


Version for tubular:
Those XeNTiS wheels are exclusively made for tubular tires.

Technical spec
Year: 2019
Manufacturer item code: 18STBLD530-R (Shimano/SRAM)
18CTBLD530-R (Campagnolo)
18XTBLD530-R (SRAM XDr)
Material: rim: 12K-carbon
hub: aluminium
Weight: approx. 1030 gram (manufacturer information)
external/internal rim width: 26 mm
E.T.R.T.O.: 26-622
Spokes: monocoque carbon
Hub axle system: 12x142 mm thru axle
Fitting type of tire: tubular
Fitting tire dimension: 22-28mm
Maximum tire pressure: 220 psi
Purpose: time trial, triathlon, competition
hub: Xentis XH004
Fitting for shifting: SRAM/Shimano 9/10/11-speed
Campagnolo 9/10/11/12-speed
SRAM XDr 11/12-speed
Max. permissible total weight
(rider + bike): 120kg
Color: matt black with matt black decals
Included in delivery: incl. wheel bag, quick release, warranty card, valve adapter, valve extension
