Passoni Fidia RTR Disc, Frameset
Category: BICYCLE ROAD
- Description
- Specifications
Available Now
Delivery 4/6 Weeks
The photos are for demonstration purposes only, for colors see attached PDF or Passoni website.
For each request concerning particular components, please ask for them when ordering.
PASSONI FIDIA
Tubes: Carbon-Titanium resined and printed in Italy. Bottom bracket shell and fittings in titanium grade 5, CNC machined
Front triangle: Shaped tubes top tube variable shape and section, seat tube Ø 35 mm, downtube shaped to maximize the stiffness
Rear triangle: Wishbone shape seat stays and chain stays to maximize the lateral stiffness and vertical compliance
Bottom bracket shell: Titanium grade 5, CNC machined, 386 EVO
Head tube: Integrated conical Ø 56 mm, CNC machined, bearing cups in stainless steel, bearing Ø 1" 1/8 upper - 1" 1/2 lower
Dropouts: Passoni carbon project, Ergal replaceable hanger
Seat post clamping device: Titanium seat clamp customised Passoni
– Weight: 950 gr.
– Size: five sizes available (50-52-54-56-58)
Available as a frame kit
Delivery 4/6 Weeks
The photos are for demonstration purposes only, for colors see attached PDF or Passoni website.
For each request concerning particular components, please ask for them when ordering.
PASSONI FIDIA
Tubes: Carbon-Titanium resined and printed in Italy. Bottom bracket shell and fittings in titanium grade 5, CNC machined
Front triangle: Shaped tubes top tube variable shape and section, seat tube Ø 35 mm, downtube shaped to maximize the stiffness
Rear triangle: Wishbone shape seat stays and chain stays to maximize the lateral stiffness and vertical compliance
Bottom bracket shell: Titanium grade 5, CNC machined, 386 EVO
Head tube: Integrated conical Ø 56 mm, CNC machined, bearing cups in stainless steel, bearing Ø 1" 1/8 upper - 1" 1/2 lower
Dropouts: Passoni carbon project, Ergal replaceable hanger
Seat post clamping device: Titanium seat clamp customised Passoni
– Weight: 950 gr.
– Size: five sizes available (50-52-54-56-58)
Available as a frame kit

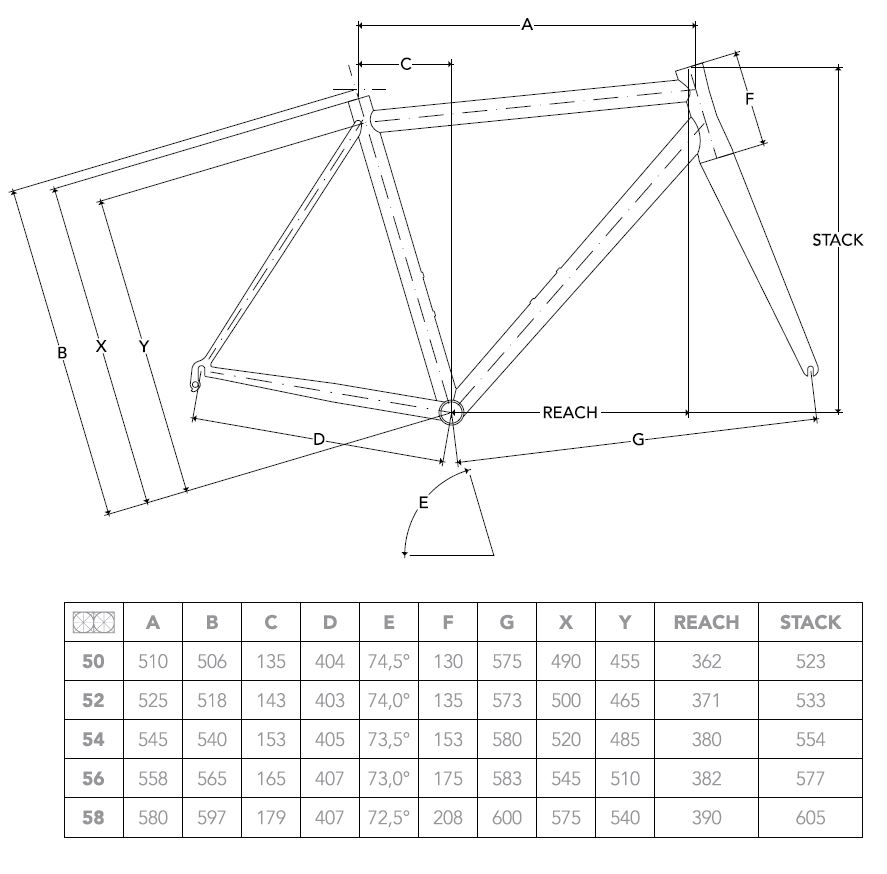

Available technical data:
