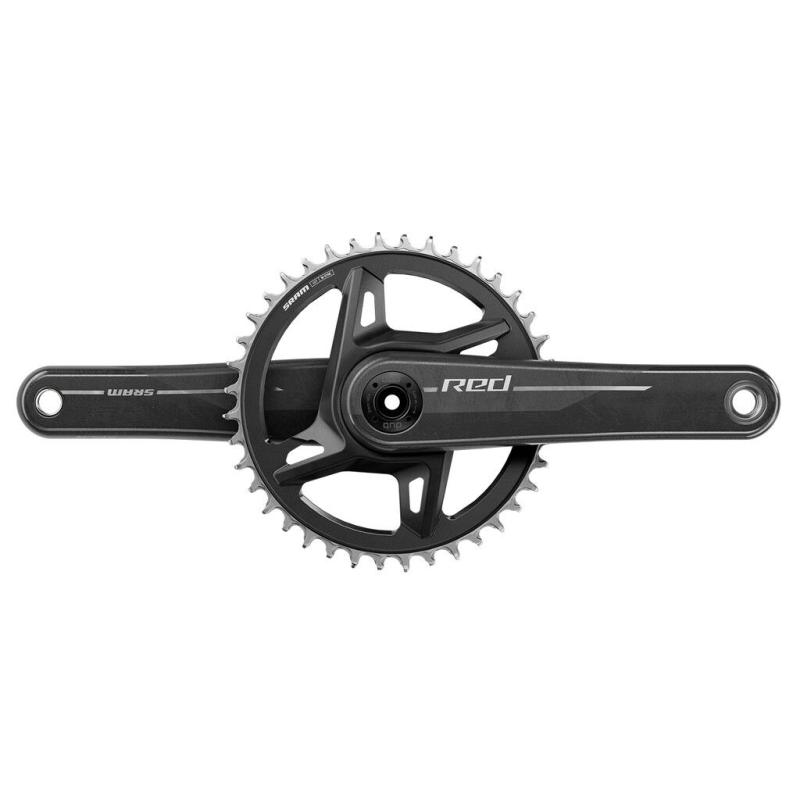

Gravel bikes deserve our lightest and stiffest cranks too. The RED XPLR crankset maximizes tire clearance and features our hollow carbon arms equipped with the direct mount 1x chainring of your choice. Now available in 160 mm crank arm length, this crankset will satisfy any rider, even those who prefer to ride on dirt tracks.

Available in 160, 165, 167.5, 170, 172.5 and 175 mm crank length
Non-aero direct mount chainrings from 38T to 46T can be replaced with a single tool
Can be upgraded with a power meter
Weight based on 172.5mm 40T
Recommandé pour: 1x12, 1x13, MY24 Red AXS; MY24 Red XPLR AXS

Cycling activity
Bidex code 202020
Diameter (mm) 28.99
FEDAS Code 160362
GTIN/EAN: 710845898983
Weight (g) 427
Size 160mm/40t
Gears 1x12SP, 1x13SP
Main category Hardware
Bottom bracket type DUB
Chainring mounting Direct Mount - 8 Bolt
Chainline 47.5
Kreditorenartikelnummer 00.6118.685.018
Scope of delivery Bottom bracket not included in scope of delivery
Brand Sram
Master number 8204000228
Material Crank arm material: Hollow-core carbon fiber construction I Chainring: Aluminum
Model ID FC-RED-1W-E1
Road and Gravel groupsets MY24 Red AXS, MY24 Red XPLR AXS
Spindle standard DUB Wide
Sport Road bike
Country of origin TW
Sales unit Set
Main product group Drivetrain parts
Product subgroup Cranksets
