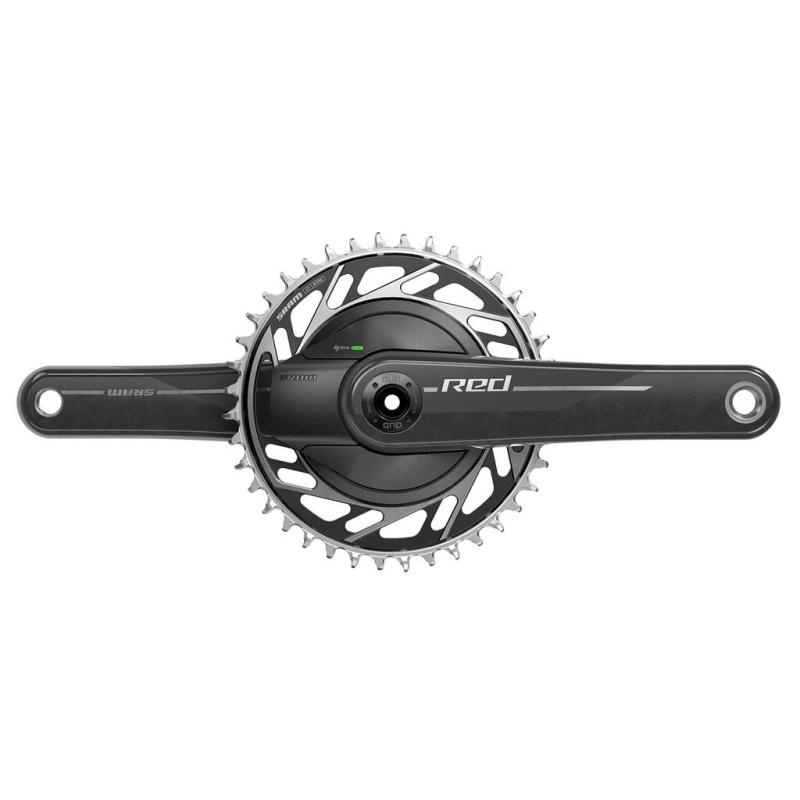

Tracking your progress on gravel is now even easier and more accurate. With our new spider-based power meter and removable, bolt-on chainrings, the RED XPLR AXS power meter is lightweight, reliable in all weather conditions and accurate to +/-1.5%. With power measurement on both sides, even your ambitious gravel training goals are within reach.

Available in 160, 165, 167.5, 170, 172.5 and 175 mm crank length
Completely new design with removable and replaceable bolt-on chainrings, available in 38Z-46Z
Power values are accurate within +/- 1.5% and are not affected by climatic conditions during a ride
Measures the power balance of the right and left leg
Battery CR2032 - service life: 200 h, can be replaced without tools
Waterproof (IPX7 tested up to 1 meter for 30 minutes)
Weight based on 172.5mm 40T
Recommended for: 1x12, 1x13, MY24 Red AXS; MY24 Red XPLR AXS; Quarq Power Meter

Cycling activity
Bidex code 301340
Diameter (mm) 28.99
FEDAS Code 160950
GTIN/EAN: 710845899409
Weight (g) 516
Size 160mm/40t
Gears 1x12SP, 1x13SP
Main category Hardware
Bottom bracket type DUB
Chainring mounting Direct Mount - 8 Bolt, Thread Mount
Chainline 47.5
Kreditorenartikelnummer 00.6118.689.000
Scope of delivery Bottom bracket not included in scope of delivery
Brand Quarq
Master number 8301000017
Material Material crank arms: hollow-core carbon fiber construction I chainring: aluminum
Model ID FC-RED-1WP-E1
Road and Gravel groupsets MY24 Red AXS, MY24 Red XPLR AXS, Quarq Power Meter
Spindle standard DUB Wide
Sport Gravel and Cyclocross, Road bike
Country of origin TW
Sales unit Piece
Main product group Drivetrain parts
Product subgroup Cranksets, power meters
