Delivery time: ask us before order

Photographs are for demonstration purposes only.

ADHX 45 COULD BE YOUR TIME IF:

Google Maps can't figure out where you are most of the time

What appears to be a vicious sock tan wipes off with a wet washcloth

You know exactly where that dirt road connects, and HIGHLY recommend it

You don't own a pump gauge that goes past 4BAR

What's Included
• DEDA S DCR Headset for Semi & Fully-Integrated Cockpits
• Front and Rear Thru Axles
• Alloy Bottle Bolts
• Integrated Seatpost Clamp
• Derailleur Hangers
• Single Cover and Drivetrain Conversion Kit

FRAME SPECS

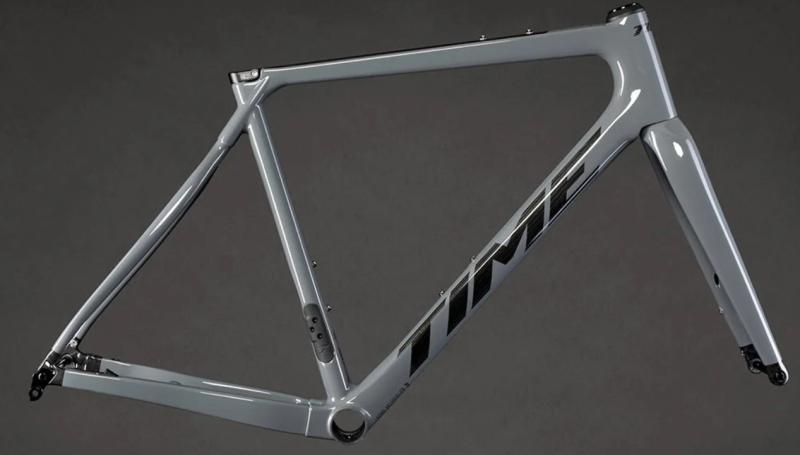

ADHX 45 FRAME SPECIFICATIONS
FRAME MATERIAL
BCS Carbon Fiber - Dyneema® Enhanced THRU AXLES
12x120x1.5mm Pitch F, 12x159x1.5 Pitch R
SIZES
XS, SM, MD, LG, XL SEATPOST DIAMETER
ø27.2mm
FORK STEERER TUBE
Tapered 1-1/8" to 1-1/2" SEATPOST CLAMP
Proprietary ADHX Alloy
HEADSET BEARINGS
Top and Bottom 1-1/2" (with internal routing compression ring) SHIFTING
Compatible with Electronic and Standard Shifting Systems
WHEEL SIZE
700c/650b FRONT DERAILLEUR
1X and 2X Wide Compatible with Integrated Single Cover and Drivetrain Conversion Kit
MAXIMUM TIRE WIDTH
700x32-45c Gravel Tire
650x50c Gravel Tire
(not all tire/rim combinations fit with adequate clearance - check for appropriate fit)
REAR DERAILLEUR
Standard Mount
BOTTOM BRACKET
PF BB386 BRAKE TYPE
Front and Rear Flat Mount Disc
DISC HUB STANDARD
12x100mm F, 12x142mm R ROTOR SIZE
140/160mm with Adapter

Available technical data:
